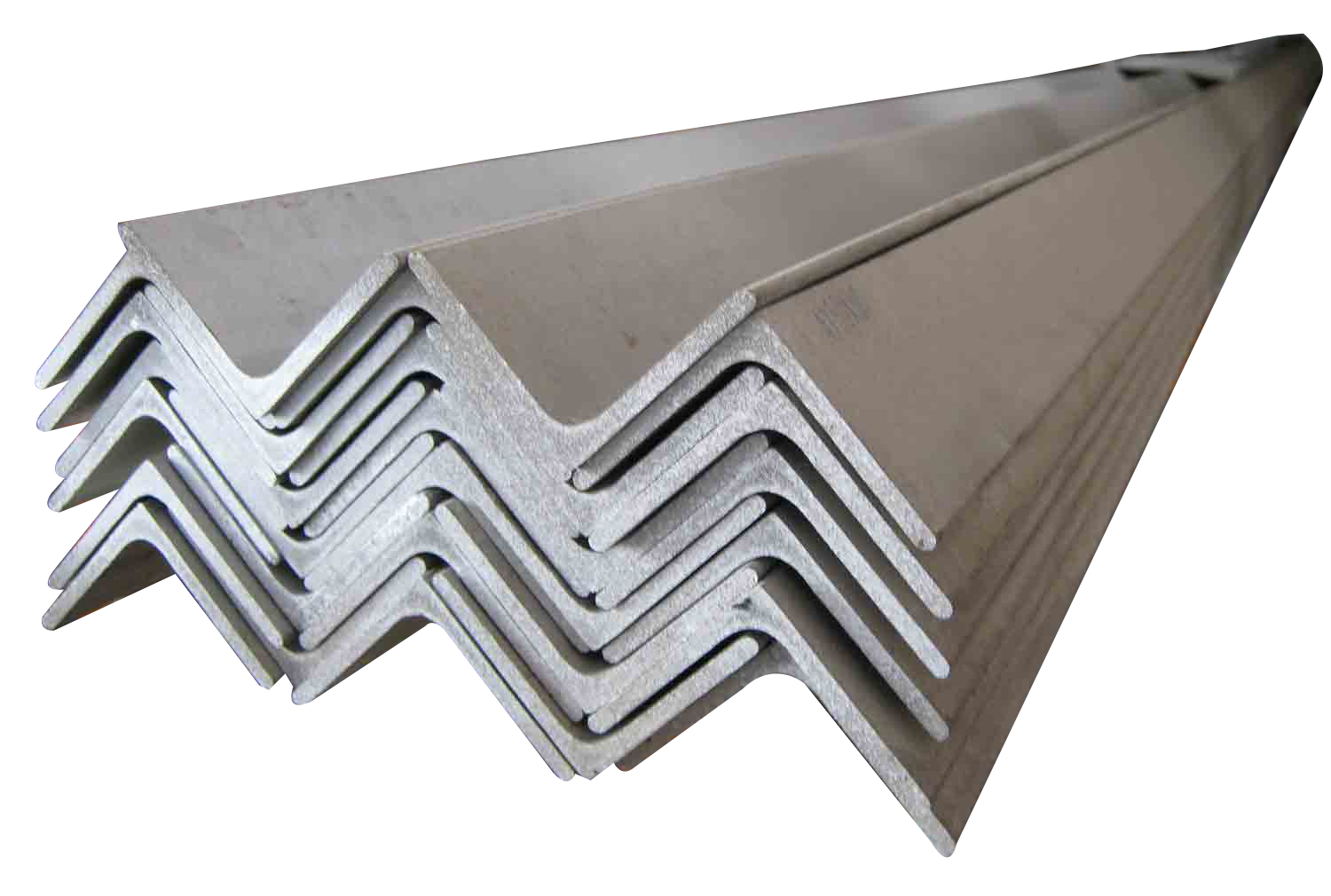

Stainless Steel Angle

202, 301, 304, 304H, 304L, 310, 310S, 316, 316L, 317, 317L, 321, 347

Grade: 200 series& 300 series& 400 series

Standard: GB/T 1220, JIS G4303, JIS G4317, ASTM A479, AISI, etc.

Length: Standard length is 4m, 5m, 6m, length tolerance≤+ 40mm/pcs.

Shape: right angle tolerance is 2°

Surface: pickled or sand blasting.
CHEMICAL COMPOSITION ( IN PERCENTAGE )

Grade
C (Max)
Mn (Max)
P (Max)
S (Max)
Si (Max)
Cr
Ni
Mo
Nitrogen (Max)
Cu/ Others
301
0.15
2.00
0.045
0.030
1.00
16.00 - 18.00
6.00 - 8.00
-
0.10
-
304
0.08
2.00
0.045
0.030
0.75
18.00 - 20.00
8.00- 10.50
-
0.10
-
304L
0.030
2.00
0.045
0.030
0.75
18.00 - 20.00
8.00- 12.00
-
0.10
-
310S
0.08
2.00
0.045
0.030
1.50
24.00- 26.00
19.00 - 22.00
-
-
-
316
0.08
2.00
0.045
0.030
0.75
16.00 - 18.00
10.00 - 14.00
2.00 - 3.00
0.10
-
316L
0.030
2.00
0.045
0.030
0.75
16.00 - 18.00
10.00 - 14.00
2.00 - 3.00
0.10
-
317
0.08
2.00
0.045
0.030
0.75
18.00 - 20.00
11.00 - 14.00
3.00 - 4.00
0.10
-
317L
0.030
2.00
0.045
0.030
0.75
18.00 - 20.00
11.00 - 15.00
3.00 - 4.00
0.10
-
321
0.08
2.00
0.045
0.030
0.75
17.00 - 19.00
9.00 - 12.00
-
0.10
Ti5 ( C + N ) Min or 0.70 max
347
0.08
2.00
0.045
0.030
0.75
17.00 - 19.00
9.00 - 13.00
-
-
Cb= 10x ( C Min ) or 1.00 Max
409
0.08
1.00
0.040
0.010
1.00
10.50 - 11.75
0.50
-
-
Ti= 6x (C+ N ) Min or 0.70 Max
409M
0.03
0.81.2
0.030
0.030
0.40.75
11.00- 12.00
1.5 max.
-
-
Ti= 6x (C) Min or 0.70 Max
410S
0.08
1.00
0.040
0.030
1.00
11.50- 13.50
0.60
-
-
-
410
0.15
1.00
0.040
0.030
1.00
11.50- 13.50
0.75
-
-
-
420
0.35
0.50
0.035
0.015
0.50
12.00 - 13.00
0.20.3
-
-
-
430
0.12
1.00
0.040
0.030
1.00
16.00 - 18.00
0.75
-
-
-
JSL AUS
0.08
7.08.0
0.070
0.030
0.75
15.50 - 16.50
4.25 - 4.75
-
-
0.9 - 1.10
JS- 203
0.08
9.2510.25
0.070
0.030
0.75
14.25 - 15.25
2.25 - 2.75
-
-
1.60- 2.0
301M
0.10
4.55.5
0.060
0.030
0.75
14.50 - 15.50
6.0 - 7.0
-
-
1.70- 1.90

* Thickness of 1.27mm & below will have elongation of 20% min.
